Fmv0 Class Reference

Base class for Finite Mesh Variables version 0. More...

#include <cosmos_d.h>

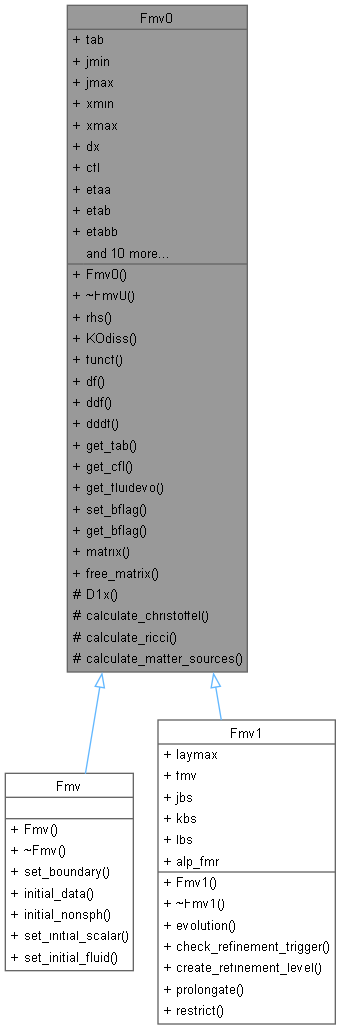

Inheritance diagram for Fmv0:

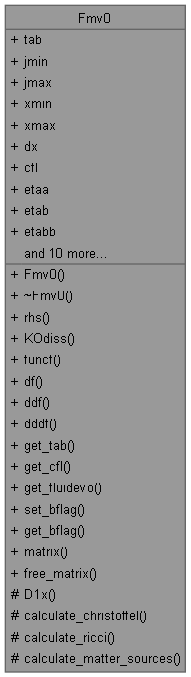

Collaboration diagram for Fmv0:

Public Member Functions
	Fmv0 (int tabs, int jupper, int jlower, int kupper, int klower, int lupper, int llower, double xupper, double xlower, double yupper, double ylower, double zupper, double zlower, double cfl_in, double etaa_in, double etab_in, double etabb_in, double KOep_in, int exg_in, double Hb_in, double fluidw_in, double kap_MUSCL_in, double b_minmod_in, double amp_in)
	Constructor for the Fmv0 class.
virtual	~Fmv0 ()
	Destructor for the Fmv0 class. Frees allocated memory.
virtual void	rhs (double dt, double t)
	Calculates the right-hand sides (RHS) of the BSSN evolution equations.
void	KOdiss (double ***q, double ***f)
	Applies Kreiss-Oliger numerical dissipation to evolved variables.
double	funcf (double x)
	Coordinate mapping function from logical coordinate (e.g., j*dx) to physical coordinate.
double	df (double x)
	First derivative of the coordinate mapping function funcf.
double	ddf (double x)
	Second derivative of the coordinate mapping function funcf.
double	dddf (double x)
	Third derivative of the coordinate mapping function funcf.
int	get_tab () const
	Get the number of buffer zones.
double	get_cfl () const
	Get the CFL factor.
bool	get_fluidevo () const
	Check if fluid evolution is enabled (based on fluidw perhaps).
int &	set_bflag (int l, int k, int j)
	Set the boundary flag at a specific grid point. Returns a reference.
int	get_bflag (int l, int k, int j) const
	Get the boundary flag at a specific grid point.
double ***	matrix (long nrl, long nrh, long ncl, long nch, long ndl, long ndh)
	Allocates memory for a 3D grid function array.
void	free_matrix (double ***m, long nrl, long nrh, long ncl, long nch, long ndl, long ndh)
	Frees memory allocated by matrix().

Public Attributes
int	tab
	Number of buffer/ghost zones.
int	jmin
	Minimum physical grid index in x.
int	jmax
	Maximum physical grid index in x.
double	xmin
	Minimum coordinate value in x.
double	xmax
	Maximum coordinate value in x.
double	dx
	Grid spacing in x (uniform logical grid).
double	cfl
	CFL factor for time step calculation.
double	etaa
	Gauge parameter eta for 1+log lapse.
double	etab
	Gauge parameter eta for Gamma-driver shift.
double	etabb
	Gauge parameter eta_b (or similar) for Gamma-driver shift.
double	KOep
	Kreiss-Oliger dissipation coefficient epsilon.
double	Hb
	Initial Hubble parameter.
double	fluidw
	Fluid equation of state parameter w (if fluid enabled).
double	kap_MUSCL
	MUSCL reconstruction parameter kappa (if fluid enabled).
double	b_minmod
	Minmod limiter parameter b (if fluid enabled).
int	exg
	Grid size for excision region (if enabled).
double	tmax
	Maximum simulation time.
double	amp
	Grid stretching parameter for coordinate mapping.
double ***	alp
	Pointer to the lapse function grid data.
double ***	betax
	Pointer to the shift vector component beta^x grid data.

Protected Member Functions
double	D1x (double ***f, int l, int k, int j)
	Calculates spatial derivatives (e.g., first derivative in x).
void	calculate_christoffel (int l, int k, int j)
	Calculates Christoffel symbols or connection functions.
void	calculate_ricci (int l, int k, int j)
	Calculates Ricci tensor components.
void	calculate_matter_sources (int l, int k, int j)
	Calculates matter source terms (Stress-Energy Tensor T_munu).

Detailed Description

Base class for Finite Mesh Variables version 0.

Handles the fundamental grid structure, memory allocation, coordinate mapping, basic BSSN evolution steps (RHS calculation), and Kreiss-Oliger dissipation. Does not implement specific boundary conditions or mesh refinement.

Constructor & Destructor Documentation

Fmv0()

Fmv0::Fmv0	(	int	tabs,
		int	jupper,
		int	jlower,
		int	kupper,
		int	klower,
		int	lupper,
		int	llower,
		double	xupper,
		double	xlower,
		double	yupper,
		double	ylower,
		double	zupper,
		double	zlower,
		double	cfl_in,
		double	etaa_in,
		double	etab_in,
		double	etabb_in,
		double	KOep_in,
		int	exg_in,
		double	Hb_in,
		double	fluidw_in,
		double	kap_MUSCL_in,
		double	b_minmod_in,
		double	amp_in )

Constructor for the Fmv0 class.

Parameters

tabs	Number of buffer zones (ghost zones).
jupper	Upper index boundary in x for the physical domain.
jlower	Lower index boundary in x for the physical domain.
kupper	Upper index boundary in y.
klower	Lower index boundary in y.
lupper	Upper index boundary in z.
llower	Lower index boundary in z.
xupper	Upper coordinate boundary in x.
xlower	Lower coordinate boundary in x.
yupper	Upper coordinate boundary in y.
ylower	Lower coordinate boundary in y.
zupper	Upper coordinate boundary in z.
zlower	Lower coordinate boundary in z.
cfl_in	CFL factor.
etaa_in	Gauge parameter eta for lapse.
etab_in	Gauge parameter eta for shift damping (B^i).
etabb_in	Gauge parameter eta_b for shift evolution.
KOep_in	Kreiss-Oliger dissipation coefficient.
exg_in	Excision region grid size.
Hb_in	Initial Hubble parameter.
fluidw_in	Fluid equation of state parameter w.
kap_MUSCL_in	MUSCL kappa parameter.
b_minmod_in	Minmod b parameter.
amp_in	Grid stretching parameter.

~Fmv0()

virtual Fmv0::~Fmv0 ( )

virtual

Destructor for the Fmv0 class. Frees allocated memory.

Member Function Documentation

calculate_christoffel()

void Fmv0::calculate_christoffel ( int l, int k, int j )

protected

Calculates Christoffel symbols or connection functions.

calculate_matter_sources()

void Fmv0::calculate_matter_sources ( int l, int k, int j )

protected

Calculates matter source terms (Stress-Energy Tensor T_munu).

calculate_ricci()

void Fmv0::calculate_ricci ( int l, int k, int j )

protected

Calculates Ricci tensor components.

D1x()

double Fmv0::D1x ( double *** f, int l, int k, int j )

protected

Calculates spatial derivatives (e.g., first derivative in x).

dddf()

double Fmv0::dddf

(

double

x

)

Third derivative of the coordinate mapping function funcf.

ddf()

double Fmv0::ddf

(

double

x

)

Second derivative of the coordinate mapping function funcf.

df()

double Fmv0::df

(

double

x

)

First derivative of the coordinate mapping function funcf.

free_matrix()

void Fmv0::free_matrix	(	double ***	m,
		long	nrl,
		long	nrh,
		long	ncl,
		long	nch,
		long	ndl,
		long	ndh )

Frees memory allocated by matrix().

funcf()

double Fmv0::funcf

(

double

x

)

Coordinate mapping function from logical coordinate (e.g., j*dx) to physical coordinate.

Parameters

x	Logical coordinate.

Returns

Physical coordinate.

get_bflag()

int Fmv0::get_bflag	(	int	l,
		int	k,
		int	j ) const

Get the boundary flag at a specific grid point.

Parameters

l	z-index.
k	y-index.
j	x-index.

Returns

Value of bflag[l-lmin][k-kmin][j-jmin].

get_cfl()

double Fmv0::get_cfl

(

)

const

Get the CFL factor.

get_fluidevo()

bool Fmv0::get_fluidevo

(

)

const

Check if fluid evolution is enabled (based on fluidw perhaps).

get_tab()

int Fmv0::get_tab

(

)

const

Get the number of buffer zones.

KOdiss()

void Fmv0::KOdiss	(	double ***	q,
		double ***	f )

Applies Kreiss-Oliger numerical dissipation to evolved variables.

Parameters

q	Pointer to the grid function data array to apply dissipation to.
f	Pointer to the RHS array corresponding to q (dissipation added here).

matrix()

double *** Fmv0::matrix	(	long	nrl,
		long	nrh,
		long	ncl,
		long	nch,
		long	ndl,
		long	ndh )

Allocates memory for a 3D grid function array.

rhs()

virtual void Fmv0::rhs ( double dt, double t )

virtual

Calculates the right-hand sides (RHS) of the BSSN evolution equations.

Parameters

dt	Current time step size (may be needed for some terms).
t	Current simulation time.

Note

This is typically the most complex function, calculating spatial derivatives and combining terms for each evolved variable.

Warning

Ensure boundary conditions are applied before calling this for points needing boundary data.

set_bflag()

int & Fmv0::set_bflag	(	int	l,
		int	k,
		int	j )

Set the boundary flag at a specific grid point. Returns a reference.

Parameters

l	z-index.
k	y-index.
j	x-index.

Returns

Reference to bflag[l-lmin][k-kmin][j-jmin].

Member Data Documentation

alp

double*** Fmv0::alp

Pointer to the lapse function grid data.

amp

double Fmv0::amp

Grid stretching parameter for coordinate mapping.

b_minmod

double Fmv0::b_minmod

Minmod limiter parameter b (if fluid enabled).

betax

double*** Fmv0::betax

Pointer to the shift vector component beta^x grid data.

cfl

double Fmv0::cfl

CFL factor for time step calculation.

dx

double Fmv0::dx

Grid spacing in x (uniform logical grid).

etaa

double Fmv0::etaa

Gauge parameter eta for 1+log lapse.

etab

double Fmv0::etab

Gauge parameter eta for Gamma-driver shift.

etabb

double Fmv0::etabb

Gauge parameter eta_b (or similar) for Gamma-driver shift.

exg

int Fmv0::exg

Grid size for excision region (if enabled).

fluidw

double Fmv0::fluidw

Fluid equation of state parameter w (if fluid enabled).

Hb

double Fmv0::Hb

Initial Hubble parameter.

jmax

int Fmv0::jmax

Maximum physical grid index in x.

jmin

int Fmv0::jmin

Minimum physical grid index in x.

kap_MUSCL

double Fmv0::kap_MUSCL

MUSCL reconstruction parameter kappa (if fluid enabled).

KOep

double Fmv0::KOep

Kreiss-Oliger dissipation coefficient epsilon.

tab

int Fmv0::tab

Number of buffer/ghost zones.

tmax

double Fmv0::tmax

Maximum simulation time.

xmax

double Fmv0::xmax

Maximum coordinate value in x.

xmin

double Fmv0::xmin

Minimum coordinate value in x.

---

The documentation for this class was generated from the following file:

• cosmos_d.h
