#include <iostream>
#include <iomanip>
#include <fstream>
#include <sstream>
#include <cmath>
#include <cfloat>
#include <cstring>
#include "cosmos.h"
#include "ahf2d.h"

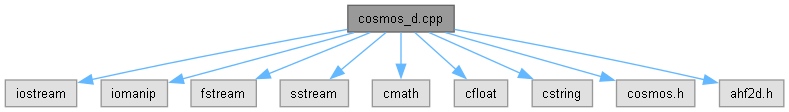

Include dependency graph for cosmos_d.cpp:

Functions
void	printpack (Fmv0 **fmv0, int ln, int pk, int pl, ofstream &filex, ofstream &filey, ofstream &filez, ofstream &filex0z, ofstream &filexy0)
	Helper function to call print routines for all active grid layers.

void	check_continue_file ( ifstream &fcontinue, bool &fld, bool &scl, int &tab, int &nxmin, int &nxmax, int &nymin, int &nymax, int &nzmin, int &nzmax, int &laymax, int &ln, int jbs, int kbs, int *lbs)
	Checks if parameters in the restart file match the current simulation setup.

void	output_params ( ofstream &fileall, bool &fld, bool &scl, int &tab, int &nxmin, int &nxmax, int &nymin, int &nymax, int &nzmin, int &nzmax, int &laymax, int &ln, int jbs, int kbs, int *lbs)
	Writes essential simulation parameters to the header of the restart file.

void	initial_read (ifstream &fin, long int &mstep, double &tmax, int &tab, double &amp, int &nxmin, int &nxmax, int &nymin, int &nymax, int &nzmin, int &nzmax, double &xmin, double &xmax, double &ymin, double &ymax, double &zmin, double &zmax, double &cfl, double &cdt, double &etaa, double &etab, double &etabb, double &KOep, int &exg, int &contn, char *file_continue, double &mu, double &kk, double &xi2, double &xi3, double &w3, double &mus, double &kks, double &xi2s, double &xi3s, double &Hb, double &fluidw, double &Mkap, double &bminmod, double &ptintval1, double &ptintval2, double &changept)
	Reads simulation parameters from the main initialization file (`par_ini.d`).

void	initial_fmr ( ifstream &fin, int &laymax, int jbs, int kbs, int lbs, double alp_fmr)
	Reads Fixed Mesh Refinement (FMR) parameters from `par_fmr.d`.

void	ahf_read (ifstream &fin, double &AHFstart, int &ahcint, int &ahpint, int &ntheta, int &nphi, int &ahloop, double &etaah, double &facn, double &err_p, double &err_e, double &ahc)
	Reads Apparent Horizon Finder (AHF) parameters from `par_ahf.d`.

int	main (int argc, char *argv[])
	Main function for the COSMOS simulation code.

Function Documentation

◆ ahf_read()

void ahf_read	(	ifstream &	fin,
		double &	AHFstart,
		int &	ahcint,
		int &	ahpint,
		int &	ntheta,
		int &	nphi,
		int &	ahloop,
		double &	etaah,
		double &	facn,
		double &	err_p,
		double &	err_e,
		double &	ahc )

Reads Apparent Horizon Finder (AHF) parameters from par_ahf.d.

Parameters

fin	Input file stream for `par_ahf.d`.
AHFstart	Simulation time at which to start searching for apparent horizons.
ahcint	Time step interval between AHF calls.
ahpint	Time step interval for printing detailed AH information (e.g., shape).
ntheta	Number of grid points in the theta direction for the AHF surface.
nphi	Number of grid points in the phi direction for the AHF surface.
ahloop	Maximum number of iterations allowed for the AHF solver.
etaah	Relaxation parameter (eta) for the AHF elliptic solver. (Note: parameter name mismatch with variable `var` in `main`)
facn	Mixing factor for using the previous step's solution as an initial guess.
err_p	Tolerance for the Poisson solver part of the AHF.
err_e	Tolerance for the main apparent horizon equation solver.
ahc	Initial guess for the coordinate radius of the apparent horizon.

Reads parameters controlling the behavior and execution of the apparent horizon finder from the par_ahf.d file. Aborts if the file cannot be opened.

Here is the caller graph for this function:

◆ check_continue_file()

void check_continue_file	(	ifstream &	fcontinue,
		bool &	fld,
		bool &	scl,
		int &	tab,
		int &	nxmin,
		int &	nxmax,
		int &	nymin,
		int &	nymax,
		int &	nzmin,
		int &	nzmax,
		int &	laymax,
		int &	ln,
		int *	jbs,
		int *	kbs,
		int *	lbs )

Checks if parameters in the restart file match the current simulation setup.

Parameters

fcontinue	Input file stream for the restart file (`out_all.dat`).
fld	Boolean indicating if fluid evolution is enabled (checked against file).
scl	Boolean indicating if scalar field evolution is enabled (checked against file).
tab	Number of ghost zones (checked against file).
nxmin	Minimum x-index (checked against file).
nxmax	Maximum x-index (checked against file).
nymin	Minimum y-index (checked against file).
nymax	Maximum y-index (checked against file).
nzmin	Minimum z-index (checked against file).
nzmax	Maximum z-index (checked against file).
laymax	Maximum allowed FMR layer number (checked against file's `ln`).
ln	Current FMR layer number (read from file).
jbs	Array of x-boundaries for FMR layers (checked against file).
kbs	Array of y-boundaries for FMR layers (checked against file).
lbs	Array of z-boundaries for FMR layers (checked against file).

Reads header lines from the restart file (out_all.dat) and compares the stored parameters (like grid dimensions, enabled physics modules, FMR setup) against the parameters provided from the current run's configuration. If any mismatch is found, it prints an error message and exits the program. It also reads the number of layers (ln) present in the restart file.

Here is the caller graph for this function:

◆ initial_fmr()

void initial_fmr	(	ifstream &	fin,
		int &	laymax,
		int *	jbs,
		int *	kbs,
		int *	lbs,
		double *	alp_fmr )

Reads Fixed Mesh Refinement (FMR) parameters from par_fmr.d.

Parameters

fin	Input file stream for `par_fmr.d`.
laymax	Maximum number of FMR layers allowed.
jbs	Array to store the x-index boundary for each FMR layer.
kbs	Array to store the y-index boundary for each FMR layer.
lbs	Array to store the z-index boundary for each FMR layer.
alp_fmr	Array to store the central lapse function value threshold for adding each FMR layer.

Reads the maximum number of layers and then iteratively reads the grid index boundaries (j, k, l) and the lapse threshold (alp_fmr) for triggering the creation of each refinement layer. Aborts if the file cannot be opened.

Here is the caller graph for this function:

◆ initial_read()

void initial_read	(	ifstream &	fin,
		long int &	mstep,
		double &	tmax,
		int &	tab,
		double &	amp,
		int &	nxmin,
		int &	nxmax,
		int &	nymin,
		int &	nymax,
		int &	nzmin,
		int &	nzmax,
		double &	xmin,
		double &	xmax,
		double &	ymin,
		double &	ymax,
		double &	zmin,
		double &	zmax,
		double &	cfl,
		double &	cdt,
		double &	etaa,
		double &	etab,
		double &	etabb,
		double &	KOep,
		int &	exg,
		int &	contn,
		char *	file_continue,
		double &	mu,
		double &	kk,
		double &	xi2,
		double &	xi3,
		double &	w3,
		double &	mus,
		double &	kks,
		double &	xi2s,
		double &	xi3s,
		double &	Hb,
		double &	fluidw,
		double &	Mkap,
		double &	bminmod,
		double &	ptintval1,
		double &	ptintval2,
		double &	changept )

Reads simulation parameters from the main initialization file (par_ini.d).

Parameters

fin	Input file stream for `par_ini.d`.
mstep	Maximum number of time steps.
tmax	Maximum simulation time.
tab	Number of ghost zones.
amp	Amplitude parameter for inhomogeneous grid stretching.
nxmin	Minimum x-index.
nxmax	Maximum x-index.
nymin	Minimum y-index.
nymax	Maximum y-index.
nzmin	Minimum z-index.
nzmax	Maximum z-index.
xmin	Minimum x-coordinate.
xmax	Maximum x-coordinate.
ymin	Minimum y-coordinate.
ymax	Maximum y-coordinate.
zmin	Minimum z-coordinate.
zmax	Maximum z-coordinate.
cfl	CFL factor for time step calculation.
cdt	Cosmological time scale factor for time step.
etaa	Gauge parameter eta_alpha for 1+log slicing.
etab	Gauge parameter eta_beta for Gamma-driver shift.
etabb	Gauge parameter eta_B for Gamma-driver shift.
KOep	Coefficient for Kreiss-Oliger dissipation.
exg	Grid index for excision boundary (if used).
contn	Flag indicating whether to continue from a restart file (1=yes, 0=no).
file_continue	Name of the restart file (e.g., "out_all.dat").
mu	Amplitude of the initial metric perturbation.
kk	Wavenumber/scale of the initial metric perturbation.
xi2	Non-sphericity parameter 1 for metric perturbation.
xi3	Non-sphericity parameter 2 for metric perturbation.
w3	Non-sphericity parameter 3 for metric perturbation.
mus	Amplitude of the initial scalar field perturbation.
kks	Wavenumber/scale of the initial scalar field perturbation.
xi2s	Non-sphericity parameter 1 for scalar field perturbation Laplacian.
xi3s	Non-sphericity parameter 2 for scalar field perturbation Laplacian.
Hb	Initial Hubble parameter.
fluidw	Equation of state parameter (w = P/rho) for the fluid.
Mkap	Kappa parameter for MUSCL reconstruction in fluid dynamics.
bminmod	Beta parameter for the minmod limiter in fluid dynamics.
ptintval1	Initial time interval for printing output.
ptintval2	Secondary time interval for printing output.
changept	Time at which the printing interval switches from ptintval1 to ptintval2.

Reads parameters line by line from par_ini.d, skipping comment lines starting with '#'. Uses sscanf to parse values. Aborts if the file cannot be opened.

Here is the caller graph for this function:

◆ main()

int main	(	int	argc,
		char *	argv[] )

Main function for the COSMOS simulation code.

Parameters

argc	Number of command-line arguments.
argv	Array of command-line arguments.

Returns: 0 on successful completion. Exits with non-zero status on error.

This is the main driver routine for the simulation. It performs the following steps:

Reads simulation parameters from par_ini.d, par_fmr.d, and par_ahf.d.
Initializes the base grid (Fmv) and potentially higher FMR layers (Fmv1).
Initializes the Apparent Horizon Finder (Ahf2d).
Sets up initial data, either from scratch using parameters or by loading from a restart file (out_all.dat).
Enters the main time evolution loop (using 4th-order Runge-Kutta via BSSN calls).
Manages the addition and evolution of FMR layers based on central lapse values.
Periodically calls the AHF to search for and track apparent horizons.
Handles output of data slices, constraints, AH properties, and full restart files.
Performs final checks and cleanup.

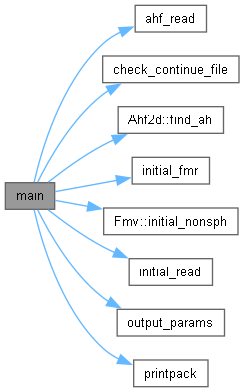

Here is the call graph for this function:

◆ output_params()

void output_params	(	ofstream &	fileall,
		bool &	fld,
		bool &	scl,
		int &	tab,
		int &	nxmin,
		int &	nxmax,
		int &	nymin,
		int &	nymax,
		int &	nzmin,
		int &	nzmax,
		int &	laymax,
		int &	ln,
		int *	jbs,
		int *	kbs,
		int *	lbs )

Writes essential simulation parameters to the header of the restart file.

Parameters

fileall	Output file stream for the restart file (`out_all.dat`).
fld	Boolean indicating if fluid evolution is enabled.
scl	Boolean indicating if scalar field evolution is enabled.
tab	Number of ghost zones.
nxmin	Minimum x-index.
nxmax	Maximum x-index.
nymin	Minimum y-index.
nymax	Maximum y-index.
nzmin	Minimum z-index.
nzmax	Maximum z-index.
laymax	Maximum allowed FMR layer number (informational, not strictly needed for restart).
ln	Current FMR layer number being saved.
jbs	Array of x-boundaries for FMR layers.
kbs	Array of y-boundaries for FMR layers.
lbs	Array of z-boundaries for FMR layers.

Writes specially formatted comment lines (##key=value) at the beginning of the out_all.dat file. These lines store crucial parameters needed to correctly interpret the data during a restart, ensuring consistency.

Here is the caller graph for this function:

◆ printpack()

void printpack	(	Fmv0 **	fmv0,
		int	ln,
		int	pk,
		int	pl,
		ofstream &	filex,
		ofstream &	filey,
		ofstream &	filez,
		ofstream &	filex0z,
		ofstream &	filexy0 )

Helper function to call print routines for all active grid layers.

Parameters

fmv0	Array of pointers to Fmv0 objects (grid hierarchy).
ln	Current highest layer index.
pk	Y-index for slices.
pl	Z-index for slices.
filex	Output stream for x-slices.
filey	Output stream for y-slices.
filez	Output stream for z-slices.
filex0z	Output stream for xz-plane slices.
filexy0	Output stream for xy-plane slices.

Iterates through the grid hierarchy, calls dyntoprim if needed, and then calls the respective print methods (print_x, print_y, print_z, print_xz, print_xy) for each layer.

Here is the caller graph for this function:
